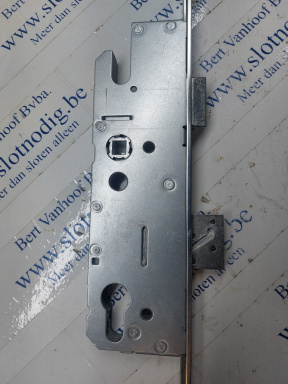

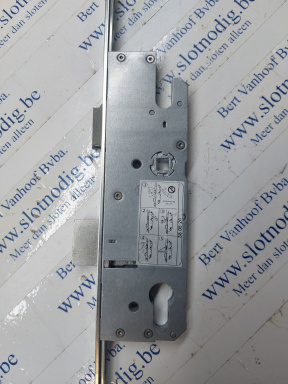

KFV BS-2800-F16-45-92-8 R001.
Lock case without the face plate see related products.
Art: 5700660
Center distance 92 mm.
Backset 45 mm.

KFV BS-2800-F16-45-92-8 R001.

Lock case without the face plate see related products.

Art: 5700660

Center distance 92 mm.

Backset 45 mm.

Face plate width F16 mm.

A = 2170 mm

B = 823 mm

C = 810 mm

F = 410 mm

G = 1020 mm

H = 260 mm

I = 260 mm

K = 137 mm

Dimensions when closed
