KFV BS-2500-F20-45-92-8 B298.
Lock case without the face plate see related products.
Art: 5490541
Center distance 92 mm.
Backset 45 mm.

KFV BS-2500-F20-45-92-8 B298.

Lock case without the face plate see related products.

Art: 5490541

Center distance 92 mm.

Backset 45 mm.

Face plate width F20 mm.

Front plate length 2170 mm.

Direction of rotation reversible.

Key operated

Distance from the center of the handle hole to the center of the lock

Down 760 mm.

Upwards 605 mm

Lock dimensions 208x62 & 150x42 mm.

kfv-as-2500

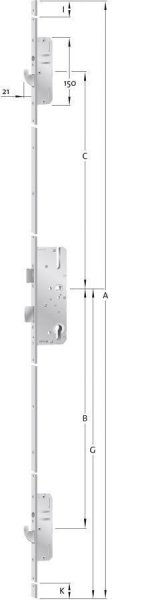

A= 2170 - B= 760- C= 605 - G=1020 - I= 415 - K= 130 mm.
