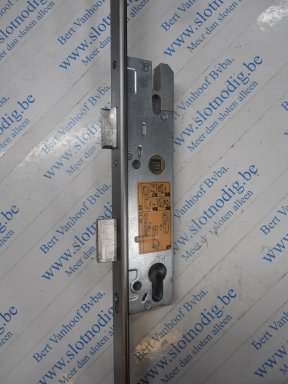

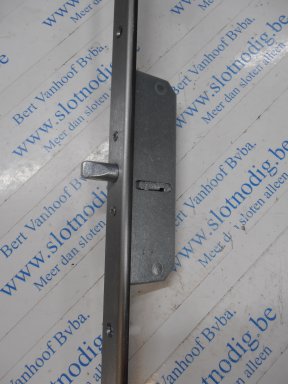

KFV AS-4350-U24-35-92-8 H.V. B001
€ 209.93
Available
KFV AS-4350-U24-35-92-8 H.V. B001.
Lock case without the face plate see related products.
Art: 3121559.
Center distance 92 mm.
Backset 35 mm.
KFV AS-4350-U24-35-92-8 H.V. B001.
Lock case without the face plate see related products.
Art: 3121559.
Center distance 92 mm.
Backset 35 mm.
Face plate width F16 mm.
Front plate length 2170 mm.
Direction of rotation reversible.
Handle operated
Distance from the center of the handle hole to the center of the lock
Down 760 mm.
Upwards 730 mm.
Lock dimensions 210x52x16 mm & 130x42x16 mm
Please note the locking pin is in the middle of the lock case
A=2170 mm
B=760 mm
C=730 mm
G=1020 mm
I=290 mm
K=130 mm
