KFV AS-4050-F16-45-92-8 Stand.Kfv 3121430.
Lock case without the face plate see related products.
Center distance 92 mm.
Backset 45 mm.
Face plate width F16 mm.

KFV AS-4050-F16-45-92-8 Stand.

Kfv 3121430.

Lock case without the face plate see related products.

Center distance 92 mm.

Backset 45 mm.

Face plate width F16 mm.

kfv-as-4050

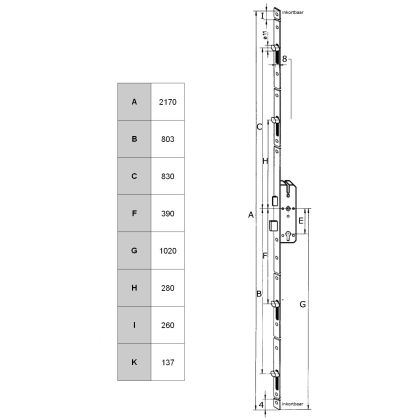

A=2170 mm

B=803 mm

C=830 mm

F=390 mm

G=1020 mm

H=280 mm

I=260 mm

K=137 mm
