Fuhr 855 GL 65/92/8-F16
€ 179.84
Available

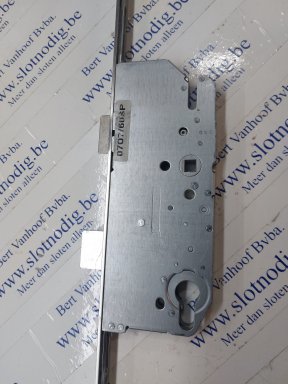

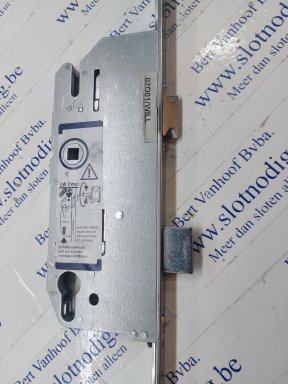

Fuhr 855 GL 65/92/8-F16.
Lock case without the face plate see related products.
Art: 9184532
Center distance 92 mm.
Backset 65 mm.
Fuhr 855 GL 65/92/8-F16.
Lock case without the face plate see related products.
Art: 9184532
Center distance 92 mm.
Backset 65 mm.
Face plate width F16 mm.
Front plate length 2170 mm.
Direction of rotation reversible.
Key operated
Distance from the center of the handle hole to the center of the lock
Down 760 mm.
Upwards 730 mm.
Lock dimensions 210x84x15 mm & 130x46x15 mm.
