Fuhr 833-35-92-8-U24-1990
€ 280.40
Available

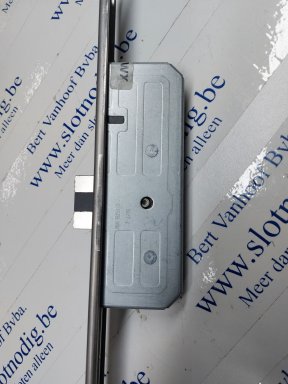

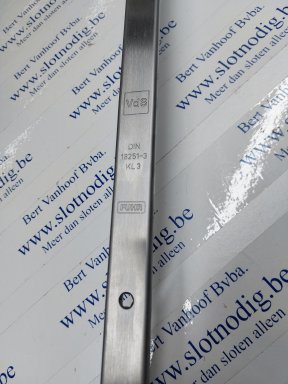

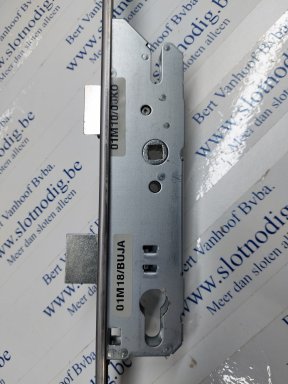

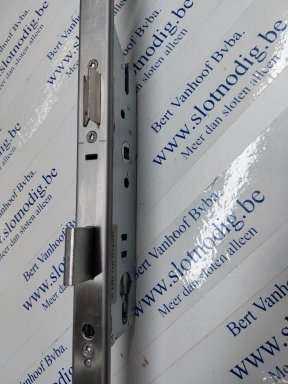

Fuhr 833-35-92-8-PZ-U24x6x1990.
Lock case without the face plate see related products.
Art: 9267488
Center distance 92 mm.
Backset 35 mm.
Fuhr 833-35-92-8-PZ-U24x6x1990.
Lock case without the face plate see related products.
Art: 9267488
Center distance 92 mm.
Backset 35 mm.
Face plate width U24 mm.
Front plate length 1990 mm.
Direction of rotation reversible.
key operated automatic
Distance from the center of the handle hole to the center of the lock
Down 770 mm.
Upwards 940 mm.
Lock dimensions 210x52x15 mm & 130x47x15 mm.
