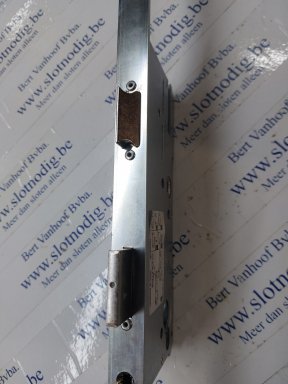

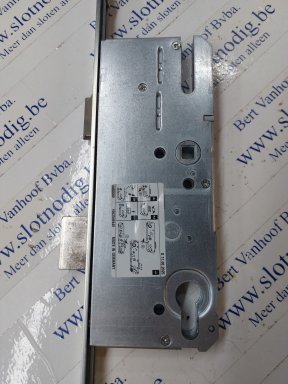

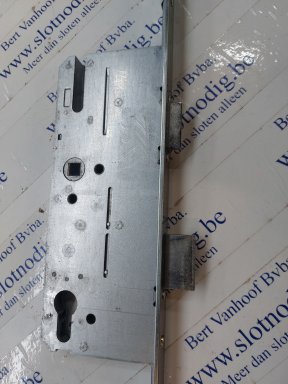

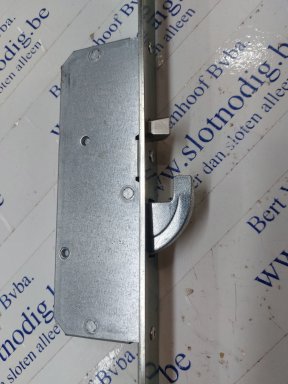

KFV AS-2750-F20-65-92-8 B001
Lock case without the face plate see related products.
Art: 3455580
Center distance 92 mm.
Backset 65 mm.

KFV AS-2750-F20-65-92-8 B001

Lock case without the face plate see related products.

Art: 3455580

Center distance 92 mm.

Backset 65 mm.

Face plate width F20 mm.

Front plate length 2170 mm.

Direction of rotation reversible.

Key operated

Distance from the center of the handle hole to the center of the lock

Down 760 mm.

Upwards 730 mm.

Lock dimensions

kfv-as-2750

- A= 2170 mm

- B= 760 mm

- C=730 mm

- G= 1020 mm

- I= 290 mm

- K= 130 mm
